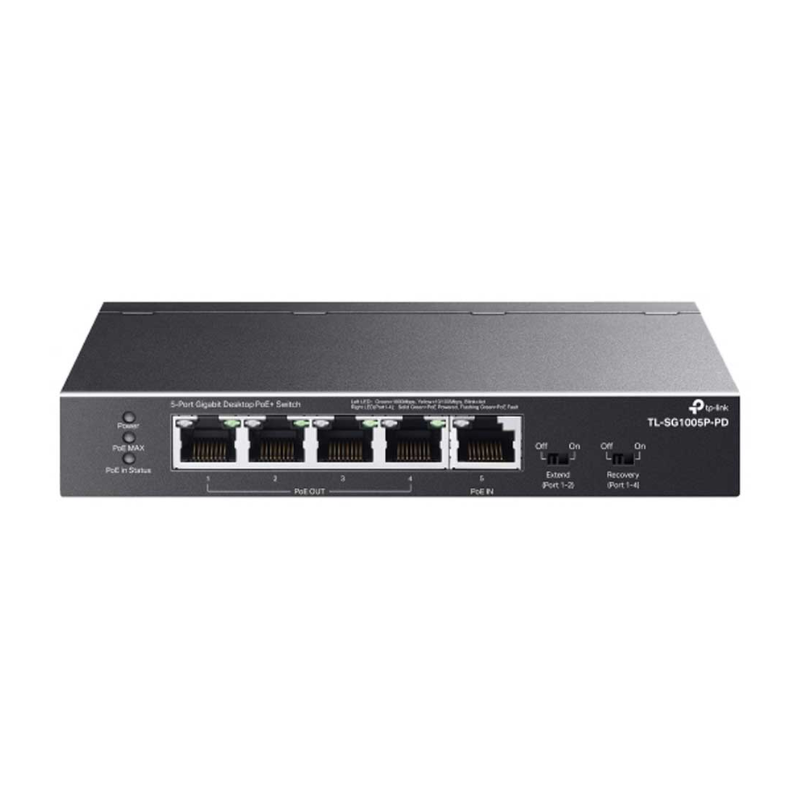

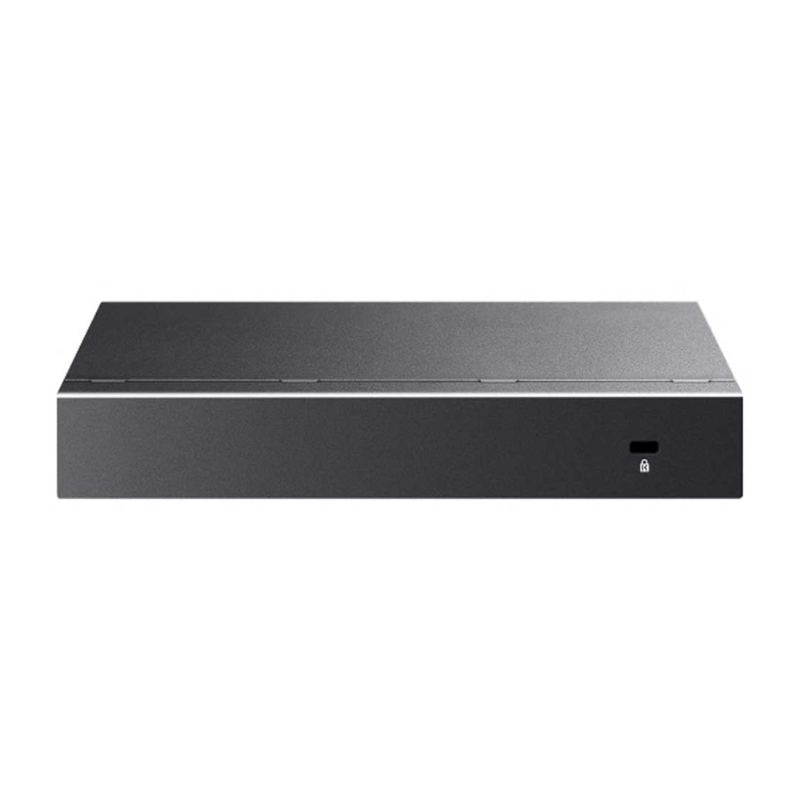

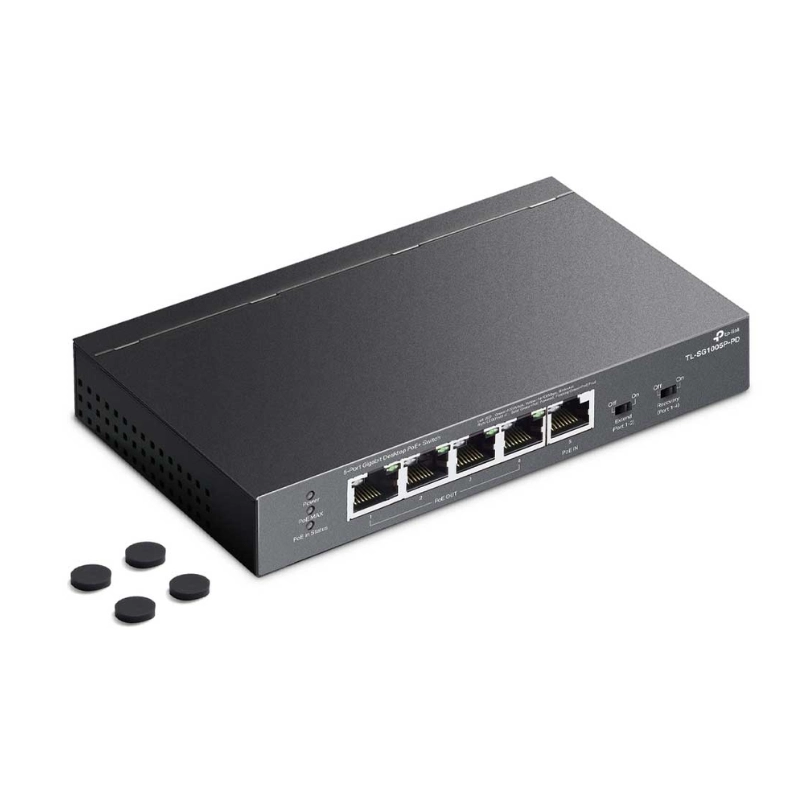

TP-Link TL-SG1005P-PD

Name: TP-Link TL-SG1005P | 5-Port Gigabit PoE+ Desktop Switch
SKU: TPL-SG1005P-PD
Price: 80.00 USD
Availability: InStock

Original price was: $129.00.Current price is: $80.00.

Weight: 1.9 lbs
Dimensions: 6.20 × 4.00 × 1.00 in
Brand: TP-Link
Switch Type: PoE Switches, Unmanaged Switches
Number of Ports: 5-10
Main Port Speed: Gigabit
Form Factor: Desktop
PoE Support: Yes
PoE Budget: Low (30-70 W)
Product Family: Omada Cloud Management
Shipping & Tax: Calculated at Checkout

5 in stock

Sold: 0

Available: 5

About this Product:

Ports: 5× 10 Mbps/100 Mbps/1 Gbps RJ45 ports
1-Port Gigabit PoE++ In and 4-Port PoE+ Out: Supports up to
66 W / 47 W / 21 W/ 9 W PoE budget output when powered by 802.3bt Type 4,
802.3bt Type 3, 802.3at, and 802.3af PoE standard, respectively.
Long-Range PoE+: With Extend Mode**, PoE transmission distance reaches up to 250 m,
perfect for surveillance camera deployment in large areas.
PoE Auto Recovery: It guarantees stable operation of PoE devices
by automatically rebooting the dropped or unresponsive PD devices.
Metal Casing: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
Silent Operation: Industry-leading fanless design ensures silent operation, ideal for any home or business.
Plug and Play: No configuration and installation required.
Power Supply: The product only supports PoE power supply, not AC or DC power supply.

Have A Question?

888.996.9609 Ask An Expert >

Industry Best Pricing
Quantity discounts available

Friendly Associates
Pre-sales product and solution advice

Expert Tech Support
Add-on tech support plans available

Super Fast Delivery
Same day shipping on most orders

The TP-Link TL-SG1005P-PD is an unmanaged 5-port Gigabit switch designed to simplify network expansion. With 1 PoE IN port and 4 PoE OUT ports, it delivers both power and data over a single Ethernet cable, making it ideal for devices like IP cameras, access points, and IP phones. Port 5 automatically detects and draws power from any IEEE 802.3af/at/bt-compliant source, while ports 1–4 supply power to compliant devices, enabling efficient network deployment even in areas without power outlets.

Perfect for users looking to upgrade their office networking solutions, the TP-Link TL-SG1005P combines convenience, reliability, and easy setup.

HARDWARE FEATURES	Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x, IEEE 802.1p Interface 5× 10/100/1000Mbps RJ45 Ports 1× 10/100/1000 Mbps RJ45 PoE In Ports (compliance with 802.3af/at/bt Type3/bt Type4) 4× 10/100/1000 Mbps RJ45 PoE Out Ports (compliance with 802.3af/at) AUTO Negotiation AUTO MDI/MDIX Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity Fanless Power Supply Only Powered by PoE Device PoE Ports (RJ45) PoE In Port: Port 5, Compliance with 802.3af/at/bt Type3/bt Type4 PoE Out Ports: Ports 1-4, compliance with 802.3af/at PoE Power Budget: -66 W when powered by 802.3bt Type 4 (90 W) -47 W when powered by 802.3bt Type 3 (60 W) -21 W when powered by 802.3at (30 W) -9 W when powered by 802.3af (15.4 W) Dimensions ( W x D x H ) 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm) Max. Power Consumption 2.68 W (90W PoE In, with no PD connected) 68.59 W (90W PoE In, with 66 W PD connected) Max. Heat Dissipation 9.112 BTU/h (90W PoE In, with no PD connected) 233.206 BTU/h (90W PoE In, with 66 W PD connected)
PERFORMANCE	Switching Capacity 10 Gbps Packet Forwarding Rate 7.44 Mpps MAC Address Table 2k
SOFTWARE FEATURES	Advanced Features Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission) PoE Auto Recovery (Ports 1-4) Mac Address Auto-Learning and Auto-Aging IEEE 802.3x Flow Control 802.1p/DSCP QoS IGMP Snooping Transmission Method Store-And-Forward
OTHERS	Certification CE, FCC, RoHS Package Content TL-SG1005P-PD Installation Guide Environment Operating Temperature: -30–70 ℃ (-22–158 ℉); Storage Temperature: -40–70 ℃ (-40–158 ℉) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing
