Yealink ZVC S90-C5U-004 – 1109943 Zoom Room System

Name: Yealink ZVC S90-C5U-004 1109943 | Video Collaboration Device
Price: 8588.00 USD
Availability: InStock

Original price was: $10,999.00.Current price is: $8,588.00.

Weight: 37.63 lbs
Dimensions: 21.89 × 15.98 × 21.81 in
Brand: Yealink
Video Conferencing: Zoom, Camera, Mini PC
Video Room Size: Extra Large
Shipping & Tax: Calculated at Checkout

About This Item:

Multi-cam solution, Flexible layout
Intelligent tracking, Free your hands
Seamless Meeting Experience with Native Zoom Rooms Integration
Outstanding Data Processing Capability
Real-Time Content Sharing for Enhanced Collaboration
Simple Deployment and Easy Use
Remote Device Management
Zoom Rooms

Have A Question?

888.996.9609 Ask An Expert >

Industry Best Pricing
Quantity discounts available

Friendly Associates
Pre-sales product and solution advice

Expert Tech Support
Add-on tech support plans available

Super Fast Delivery
Same day shipping on most orders

The Yealink ZVC S90-C5U-004 is a premium Zoom Rooms solution engineered for extra-large meeting spaces, classrooms, and training environments. This advanced bundle includes the MCore 4 mini-PC powered by Intel Ultra5 125H, the MTouch Plus 11.6″ touch panel, dual UVC86 4K cameras, AVHub processor, RoomSensor, and BYOD-Extender for seamless device integration. With support for up to 9 cameras, intelligent speaker tracking, and customizable layouts, this system delivers a high-performance video conferencing experience with effortless control and flexible deployment.

Explore high-quality Video Bars for business meeting needs.

GENERAL	Model: ZVC S90-C5U-004 Part number: 1109943

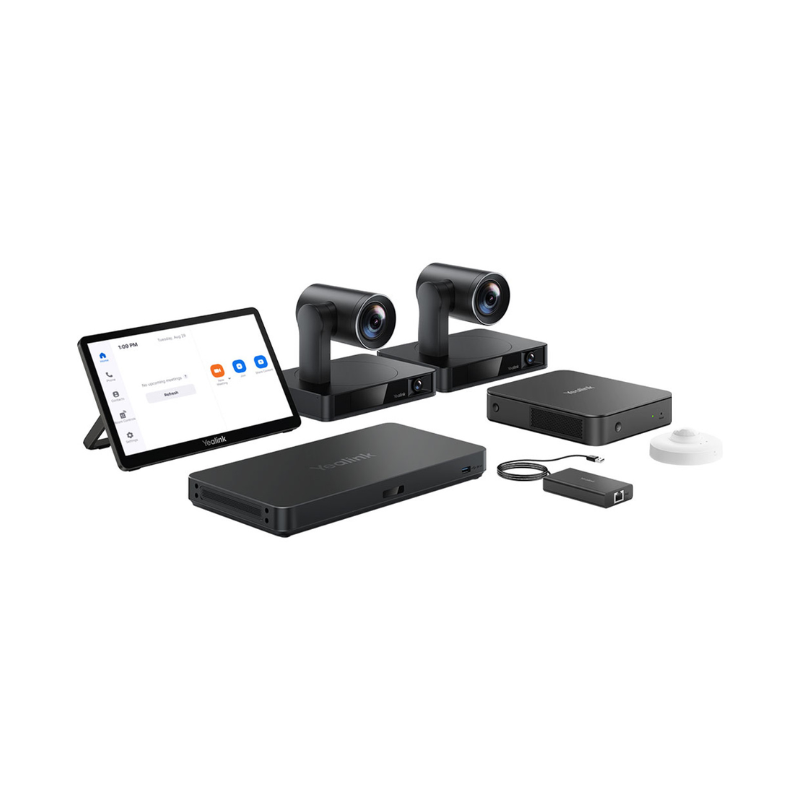

PACKAGE CONTENT	MCore 4 MTouch Plus RoomSensor UVC86*2 AVHub BYOD-Extender
PRELOAD	Windows 11 IoT Enterprise X64 Windows 11 IoT Enterprise License Zoom Rooms App Yealink RoomConnect

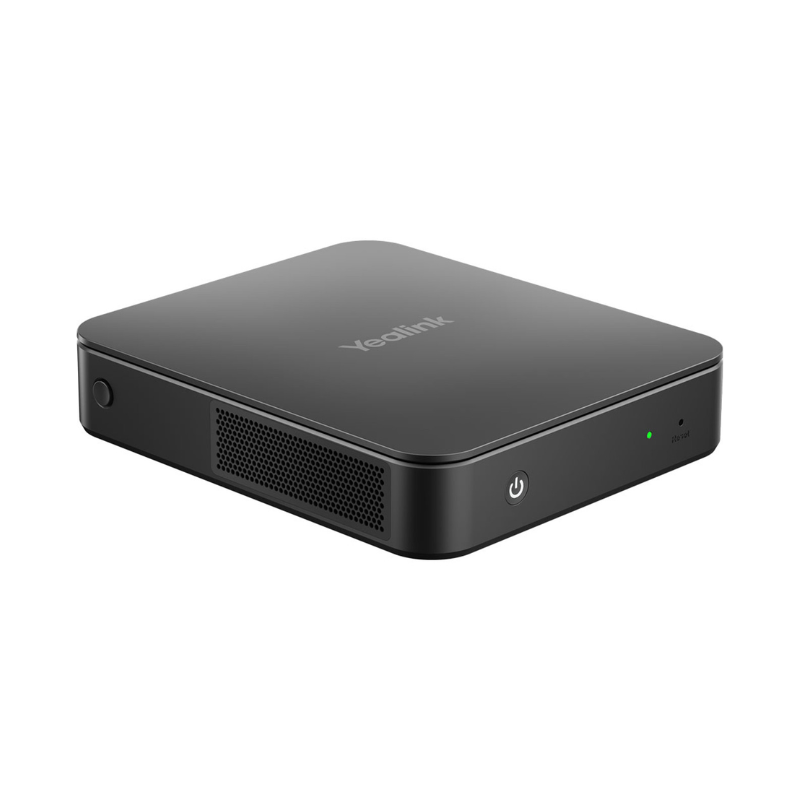

MCORE 4, GEN-4 MINI-PC	Processor: Intel Ultra5 125H Memory: 16GB(2*8GB) DDR5 Storage: 256GB SSD BIOS feature: 3x HDMI video output CEC EDID TPM2.0 Kernel DMA Interfaces: 1 x HDMI-Out 2.1 port 2 x HDMI-Out 2.0 port 1 x HDMI-In port 4 x USB3.0 Type-A Port 1 x MTouch Port (RJ-45) 1 x LAN port for AV network 1 x 10/100/1000 Gigabit Ethernet Port 1 x Power Supply Port 1 x 3.5mm headphone Port 1 x reset port 1 x Security Slot WiFi: IEEE 802.11 a/b/g/n/ac/ax Bluetooth: BT 5.2

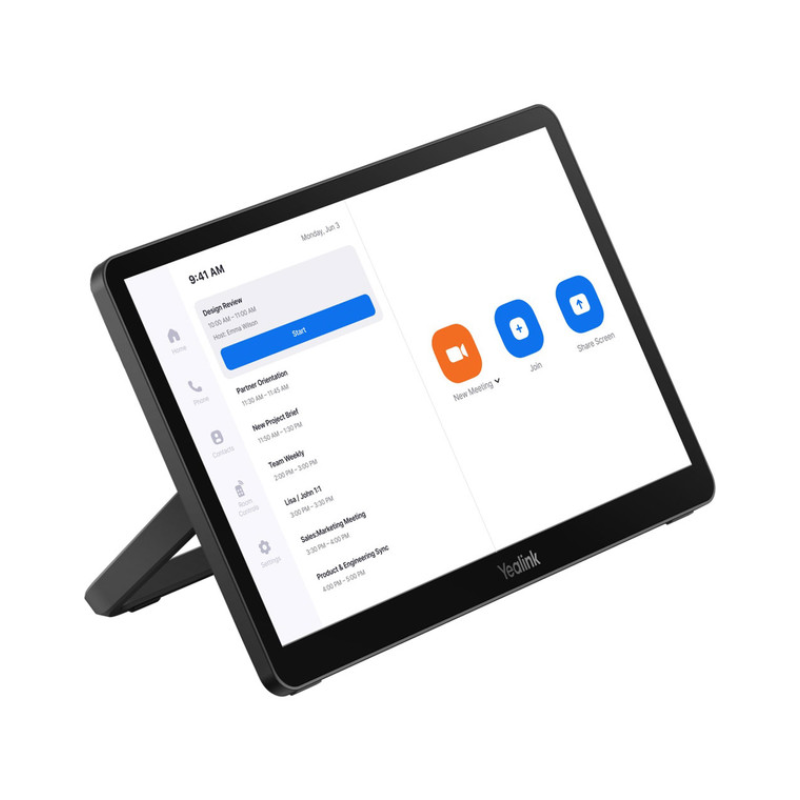

MTOUCH PLUS	Physical Features: 11.6-inch narrow bezel IPS display Angle between screen and desktop (30° ~ 70°) Adjustable angle of support frame (50° ~ 180°) Function Features： 1920 x 1080 video resolution Support wired and wireless (with WPP30) content sharing Support external PD power supply to power the sharing device Support HDMI/USB-C video input Support desktop placement, desktop fixed, and wall-mounted deployment

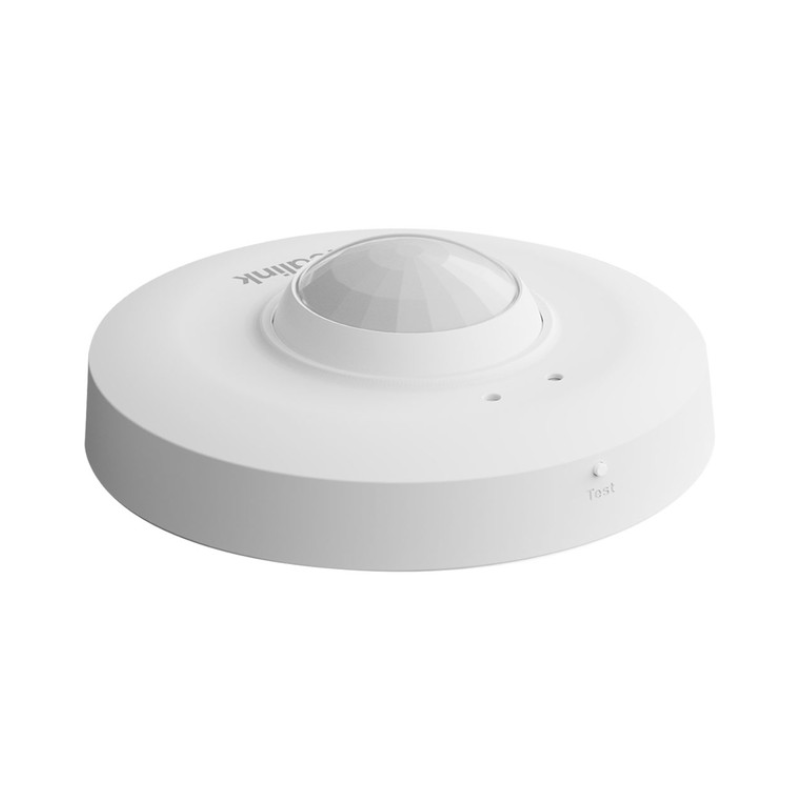

ROOMSENSOR	Detection angle: 120° Adjustable detection angle: ±20° Operating temperature: 0-40℃ Operating humidity: 10-95%

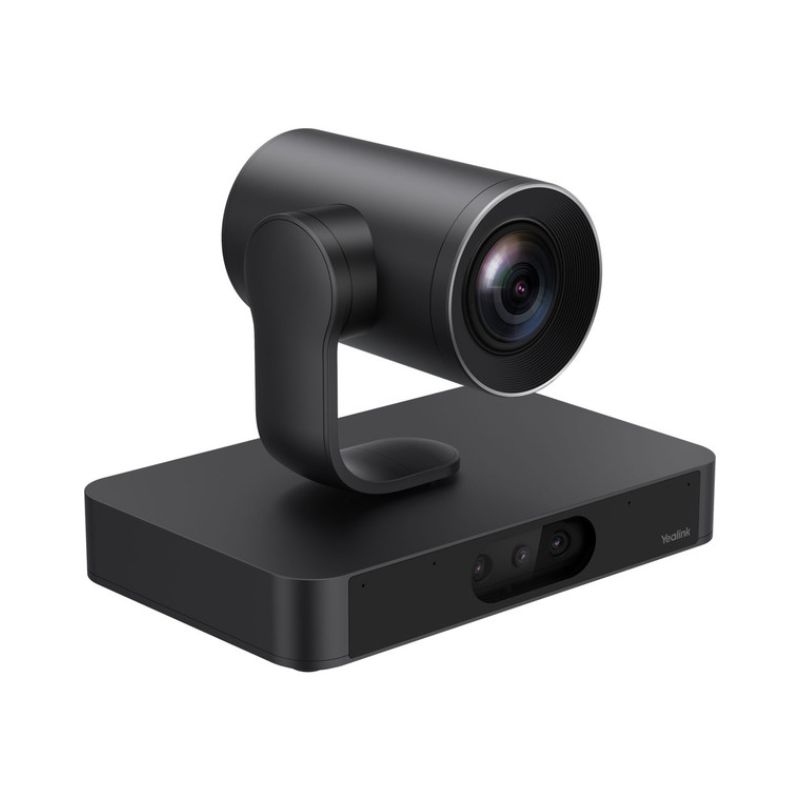

UVC86 USB PTZ CAMERA	Camera: 4K Sensor 20.4 × HD zoom (12x optical, 1.7x digital) 90° DFOV, 81° HFOV, 50° VFOV (Telephoto lens) 120° DFOV, 110° HFOV, 78° VFOV (Panoramic lens) Up to 9 preset positions can be set Horizontal rotation: 200° Vertical rotation: 130° AI feature: Auto-framing Speaker tracking Presenter tracking, support area trigger and gesture control Multi-focus Picture-in-picture Interfaces: 1 x HDMI output 1 x Yealink microphone port (RJ-45) 1 x USB 3.0 Type-B port 1 x USB 2.0 Type-A Port 1 x Power Port 1 x Security Lock 1 x Reset Hole

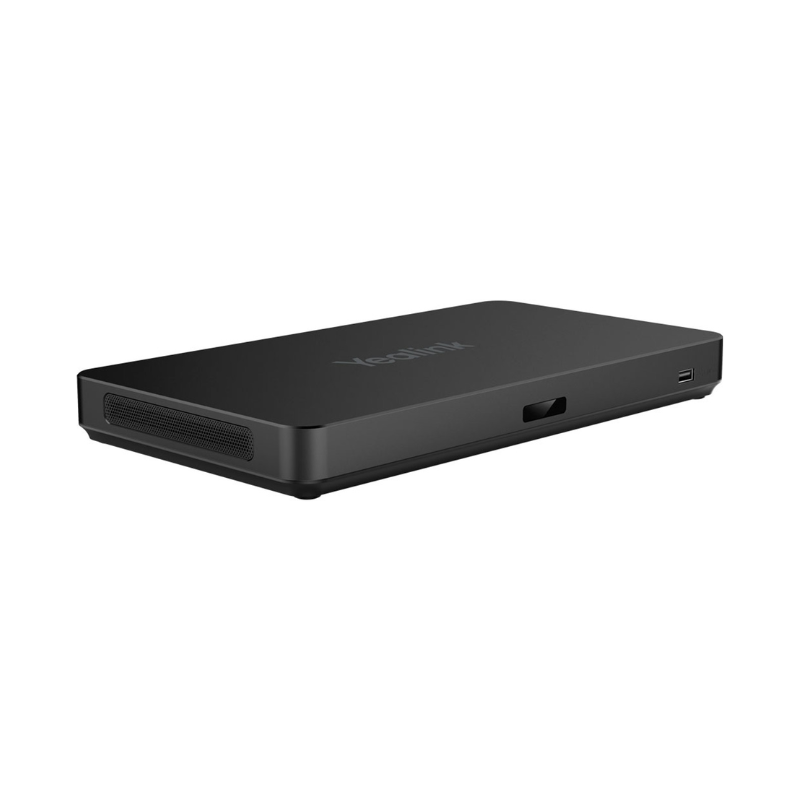

AVHUB, AUDIO AND VIDEO PROCESSOR	Interfaces: 2 x USB-A port 1 x USB-B port 1 x Codec port 7 x Yealink VCH port (RJ-45) 1 x RCA in/out interface 1 x 6.3mm Line in interface 1 x 6.3mm Line out interface 1 x power interfaceFunction Features： Dividable and merging meeting rooms are supported Support intelligent multi-speaker tracking

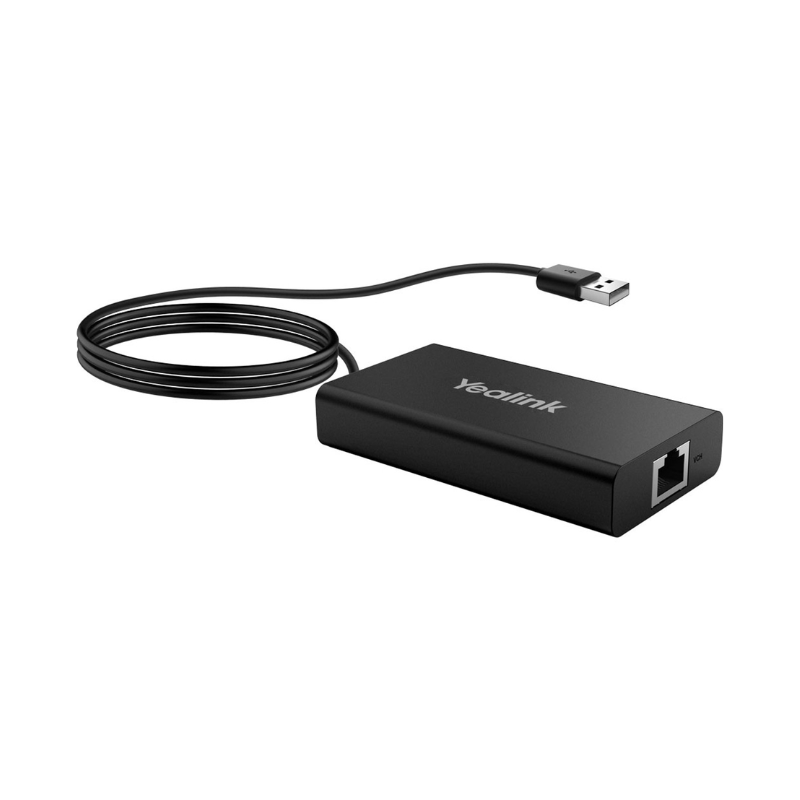

BYOD-EXTENDER	Interfaces: 1.5m USB2.0 Type-A cable 1 x VCH port (RJ45) Physical Feature: Operating humidity: 10~95% Operating temperature: 0~40℃ Dimension:89mm x 48mm x 17mm
Manufacturers	YEALINK
