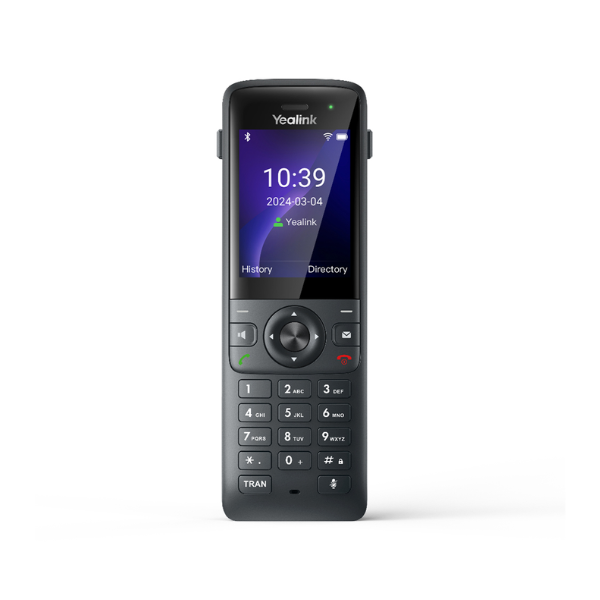

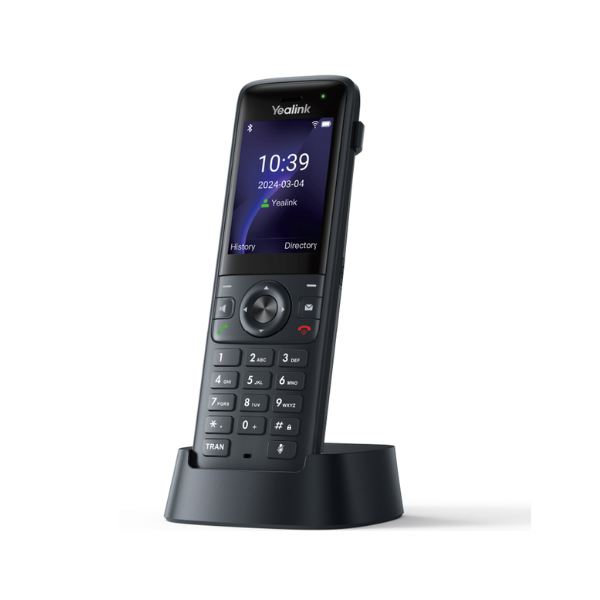

Yealink AX83H Wi-Fi Phone – 1301013

Model: AX83H Wi-Fi Phone
Part number: 1301013
UPC Code: 841885123893
EAN Code: 6938818320048
Package Contents:
Yealink AX83H Phones
Charger Cradle
Rechargeable Battery
Belt Clip
Quick Start Guide
Power Adapter
Audio Features:
Optimal HD audio:
HD handset
HD speaker
Hearing aid compatible (HAC) compliant
Audio codec:
G.722, PCMU (G.711μ), PCMA (G.711A), G.729,
G.729A, G.729B, G.729AB, G.726, G.723.1, iLBC
DTMF: In-band, Out-of-band (RFC 2833) and SIP INFO
Full-duplex hands-free speakerphone with AEC
Smart Noise Cancellation Technology
VAD, CNG, AEC, PLC, AJB, AGC
Display and Indicator:
2.4″ 240×320 TFT color screen
Keypad backlight
Vibration
Wallpaper and screensaver
LED for call and message waiting indication
Multilingual user interface
Caller ID with name, number, and avatar
Phone Features:
4 VoIP accounts
Speed dial, redial
Call hold/call transfer/call waiting/call forward
Emergency call
Mute, DND
Auto answer
Hotline
Recall
Local 5-way conferencing
Direct IP call without SIP proxy
Ring tone selection/import/delete
Set date time manually or automatically
Dial Plan, XML Browser, Action URL/URI
RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
Customizable softkey
Peripherals:
Support Bluetooth headset
Basic functions: answer/end/mute call
Enhanced functions: redial/call hold/
volume adjustment two-way synchronization
IP-PBX Features:
Anonymous call, anonymous call rejection
Intercom
Multicast paging
Call completion
Message Waiting Indicator (MWI)
Call Park, call pickup
Call recording
Voice mail
Feature Keys:
2 soft keys
7 function keys: dial, hang up, handsfree,
voice message, mute, call transfer
Navigation key and OK key
Interface
1 x 3.5 mm headset jack
1 x Type-C port
Network:
Built-in dual-band Wi-Fi:
Network standard: 2.4G&5G
IEEE802.11a/b/g/n/ac/ax
Frequency range: 2.4 GHz/ 5.0 GHz
Roaming: IEEE802.11 k/r/v
Built-in Bluetooth 5.0:
Connecting to Bluetooth Headset
IPv4/IPv6
SIP v1 (RFC2543), v2 (RFC3261)
Call server redundancy supported
NAT traversal:
STUN mode
SIP link mode:
Proxy mode and peer-to-peer
IP Assignment:
static/DHCP
HTTP/HTTPS web server
Time and date synchronization using SNTP
UDP/TCP/DNS-SRV (RFC 3263)
QoS:
Layer 3 ToS DSCP, 802.11e/WMM
Power:
Power adapter:
AC 100~240V input and DC 5V/1.2A output
