Ubiquiti U7 Pro XGS
Ubiquiti U7 Pro XGS
Categories: , ,

Ubiquiti U7 Pro XGS – White Tri-band WiFi 7 Access Point

Original price was: $389.00.Current price is: $352.00.

Weight: 1.8 lbs
Dimensions: 8.50 × 5.80 × 1.30 in
Brand: Ubiquiti
Network Band: Tri-Band
Frequency Band: 2.4 Ghz, 5 Ghz, 6 Ghz
Mounting Options/Type: Ceiling
Shipping & Tax: Calculated at Checkout

5 in stock

Sold: 0
Available: 5

About This Item:

  • Tri-band Wi-Fi 7 (IEEE 802.11n/ac/ax/be/v/r/k) with 2.4 GHz, 5 GHz, and 6 GHz support
  • 8-stream MIMO technology with Multi-User MIMO for optimized performance
  • Dedicated spectral scanning radio for advanced interference management
  • High-speed connectivity up to 8.60 Gbit/s
  • Flexible Ethernet options: 10G, 5G, 2.5G, and 1G RJ-45 ports
  • Ceiling or wall mountable design for versatile installation
  • Power consumption: 29 W

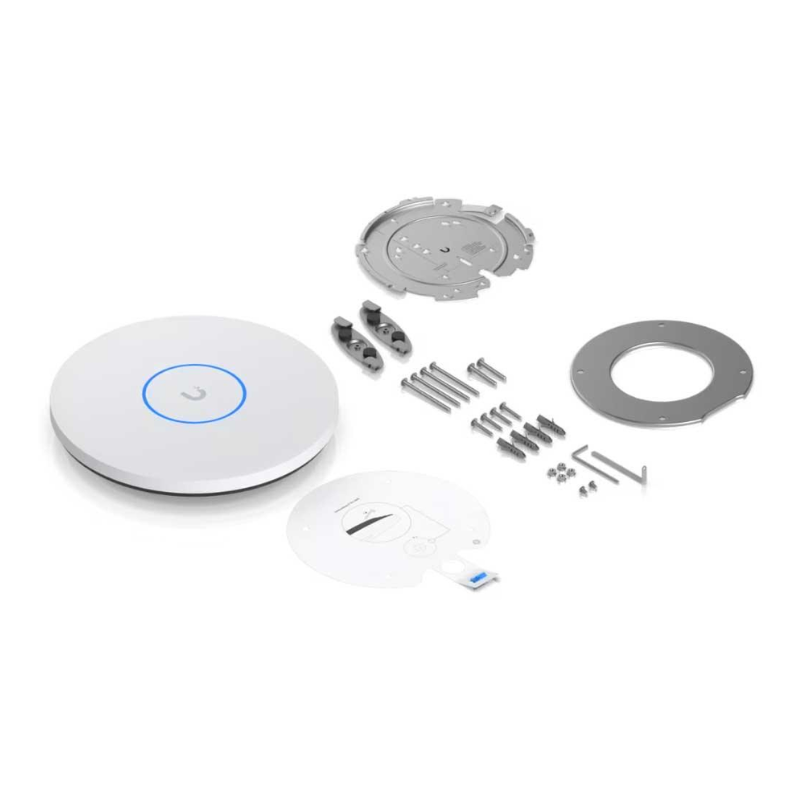

  • Package includes U7 Pro XGS Wireless Access Point and Lite Mount
Badge
Have A Question?
888.996.9609 Ask An Expert >
Industry Best Pricing
Quantity discounts available
Friendly Associates
Pre-sales product and solution advice
Expert Tech Support
Add-on tech support plans available
Super Fast Delivery
Same day shipping on most orders

Ubiquiti U7 Pro XGS (White) is a ceiling-mounted tri-band WiFi 7 access point designed to deliver ultra-fast, reliable wireless performance in enterprise environments. Equipped with 8 spatial streams, an advanced spectral scanning radio, and multi-Gigabit Ethernet, it ensures optimized throughput, reduced interference, and seamless connectivity for high-density deployments.

Ideal for offices, campuses, and commercial spaces, this access point supports next-generation wireless standards for businesses planning future-ready upgrades. It’s a perfect fit for organizations investing in business WiFi 7 network upgrades to enhance speed, scalability, and overall network efficiency.

MODEL

U7-Pro-XGS
OVERVIEW

Dimensions: Ø215 x 32.5 mm (Ø8.5 x 1.3″)
WiFi Standard: WiFi 7 (802.11be)
Spatial Streams: 8 total
Coverage Area: 160 m² (1,750 ft²)
Max Client Count: 500+
Uplink: 10 GbE
Mounting: Ceiling, Wall (Lite Mount Included)
Power Method: PoE++
PERFORMANCE

MIMO:
6 GHz: 2 x 2 (DL/UL MU-MIMO)
5 GHz: 4 x 4 (DL/UL MU-MIMO)
2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
Max Data Rate:
6 GHz: 5.8 Gbps (BW320)
5 GHz: 8.6 Gbps (BW240)
2.4 GHz: 688 Mbps (BW40)
Antenna Gain:
6 GHz: 6 dBi
5 GHz: 6 dBi
2.4 GHz: 4 dBi
Max TX Power:
6 GHz: 24 dBm
5 GHz: 29 dBm
2.4 GHz: 23 dBm
Max BSSIDs: 8 per Radio
Supported Data Rates:
802.11be (WiFi 7):
6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 – MCS13, NSS1/2, EHT 20/40/80/160/320)
5 GHz: 7.3 Mbps to 8.6 Gbps (MCS0 – MCS13, NSS1/2/3/4, EHT 20/40/80/160/240)
802.11ax (WiFi 6): 7.3 Mbps to 4.8 Gbps (MCS0 – MCS11, NSS1/2/3/4, HE 20/40/80/160)
802.11ac (WiFi 5): 6.5 Mbps to 3.4 Gbps (MCS0 – MCS9, NSS1/2/3/4, VHT 20/40/80/160)
802.11n: 6.5 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40)
Channel Bandwidths: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
FEATURES

Wireless Meshing
Band Steering
802.11v BSS Transition Management
802.11r Fast Roaming
802.11k Radio Resource Management (RRM)
Zero-Wait DFS
Advanced Radio Management
Real-Time Spectral Analysis
Passpoint (Hotspot 2.0)
Captive Hotspot Portal
Custom Branding Landing Page
Voucher Authentication
Payment-Based Authentication
External Portal Server Support
Password Authentication
Guest Network Isolation
Private Pre-Shared Key (PPSK)
WiFi Speed Limiting
Client Device Isolation
WiFi Schedules
RADIUS over TLS (RadSec)
Dynamic RADIUS-assigned VLAN
HARDWARE

Max Power Consumption: 29W
Supported Voltage Range: 42.5—57V DC
Networking Interface: (1) 10 GbE RJ45 port
Weight: 800 g (1.8 lb)
Management: Ethernet
Enclosure Material: UV-stabilized polycarbonate, aluminum alloy
Mount Material: Stainless steel (SUS304), galvanized steel (SGCC)
LEDs: System (White/Blue)
OPERATING FREQUENCY

US/CA:
2.4 GHz: 2400 – 2472 MHz
U-NII-1: 5150 – 5250 MHz
U-NII-2A: 5250 – 5350 MHz
U-NII-2C: 5470 – 5725 MHz
U-NII-3: 5725 – 5850 MHz
U-NII-5 to U-NII-8: 5925 – 7125 MHz
Worldwide:
2.4 GHz: 2400 – 2483.5 MHz
5 GHz: 5150 – 5725 MHz
6 GHz: 5925 – 7125 MHz
ENVIRONMENTAL

Ambient Operating Temperature: -30 to 40° C (-22 to 104° F)
Ambient Operating Humidity: 5 to 95% noncondensing
COMPLIANCE

NDAA Compliant: ✓
Certifications: CE, FCC, IC, Anatel: 05123-25-08356
