| MODEL |

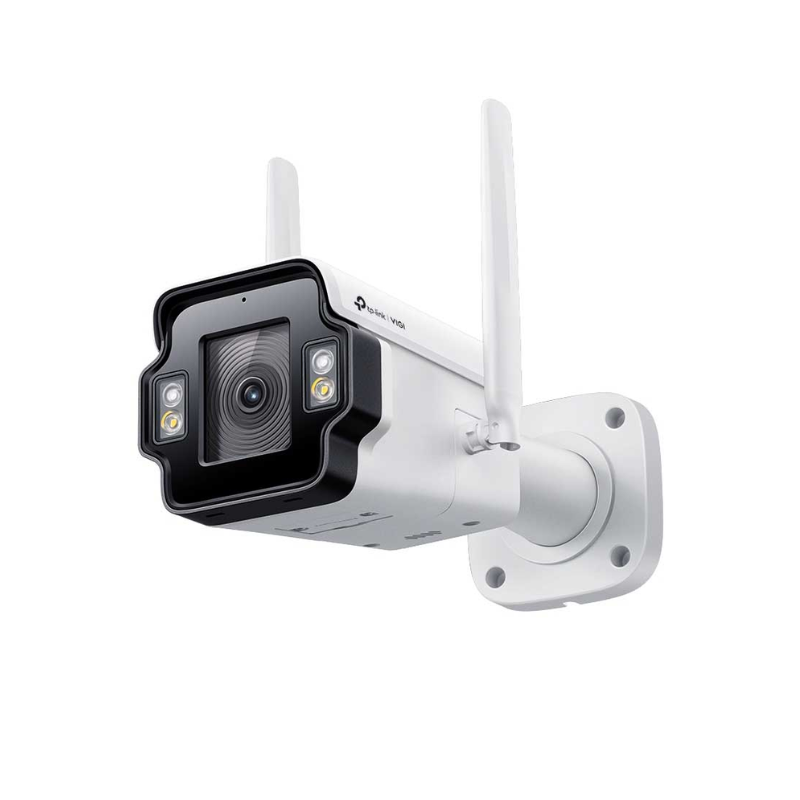

InSight S345-4G
|
| CAMERA |
Image Sensor
1/2.9“Progressive Scan CMOS
Shutter Speed
1/3 to 1/10000 s
Slow Shutter
Yes
Minimum Illumination
0.005 Lux; 0 Lux with IR/White Light
Day/Night Mechanism
IR Cut Filter
Day/Night Switch
Unified/ Scheduled/ Auto
|
| LENS |
Type
Fixed Focal Lens
Focal Length
4 mm
Aperture
F1.6
FOV
Horizontal FOV: 86°, Vertical FOV: 43°, Diagonal FOV: 95°
Lens Mount
M12
DORI Distance
Detect: 80 m (262 ft)
Observe: 33 m (109 ft)
Recognize: 16 m (52 ft)
Identify: 8 m (26 ft)
|
| ANGLE ADJUSTMENT |
Range
• Pan: 0° to 360°
• Tilt: 0° to 90°
• Rotate: 0° to 360°
|
| ILLUMINATOR |
IR LED
• Quantity: 2
• Range: 50m
• Wavelength: 850nm
White LED
• Quantity: 2
• Range: 30m
Illuminator On/Off Control
Auto/Scheduled/Always on/Always off
|
| VIDEO |
Max. Resolution
2688 X 1520
Main Stream
• Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution:
2688×1520,2560×1440,2304×1296,2048×1280,1920×1080,1280×720
Sub-Stream
• Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution:
848×480,704×576, 640×480, 640×360,352×288, 320×240
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control
CBR, VBR
Video Compression
• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
H.264 Type
High Profile
H.264+
Main Stream Supported
H.265 Type
Main Profile
H.265+
Main Stream Supported
Video Bit Rate
• Main Stream: 256 Kbps to 6 Mbps
• Sub-Stream: 64 Kbps to 512 Kbps
|
| IMAGE |
Image Settings
• Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White Balance
• Prevent Overexposure to Infrared Light
Image Enhancement
BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range
120dB
Image Parameters Switch
Yes
Privacy Mask
Up to 4 Masks
ROI
1 Region
OSD Setting
Yes
|
| AUDIO |
Audio Communication
Two-Way Audio
Audio Input
Yes (Built-in Microphone)
Audio Output
Yes (Built-in Speaker)
Audio Compression
Yes
Audio Sampling Rate
8KHz
Environment Noise Filtering
Yes
Audio Bit Rate
64 Kbps(G.711 alaw)
|
| NETWORK |
Protocol
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
ONVIF
Yes
API
Open Network Video Interface (Profile S/G/T)
Simultaneous Live View
3 Main Streams & 3 Sub-Streams
Client
VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS
Web Browser
• Google Chrome® 57 and above
• Firefox® 52 and above
• Safari® 11 and above
• Microsoft® Edge 91 and above
Cloud
Yes
Security
Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
|
| 4G |
Standard
LTE-FDD
SIM Type
Nano SIM*1
(supports data-only SIM card)
Category
4
Frequency
• LTE-FDD: B 2/4/5/12/13/14/66/71
Uplink and Download Data Rate
Uplink: 50 Mbps, Downlink: 150 Mbps
Antenna
• Quantity: 2
• Type:
690~960&1710~2690MHz Dipole Omni-Directional Antenna
• Gain:
Ant1&Ant2: 0.8dBi@690~960MHz,
3dBi@1710~2690MHz
|
| ALARM AND EVENT MANAGEMENT |
Smart Event
• Intrusion Detection
• Line-Crossing Detection
• Region Entering Detection
• Region Exiting Detection
• Loitering Detection
• People Detection
• Vehicle Detection
• Abnormal Sound Detection
• Scene Change Detection
Basic Event
• Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)
• Video Tampering Detection
• Exception (Illegal Login)
Alarm Linkage
• Memory Card Video Recording
• Message Push
• Audible Warning
• White Light Flashing
• Upload to FTP server
• Send to Alarm Server
• Email Alarm
|
| INTERFACES |
Network Interface

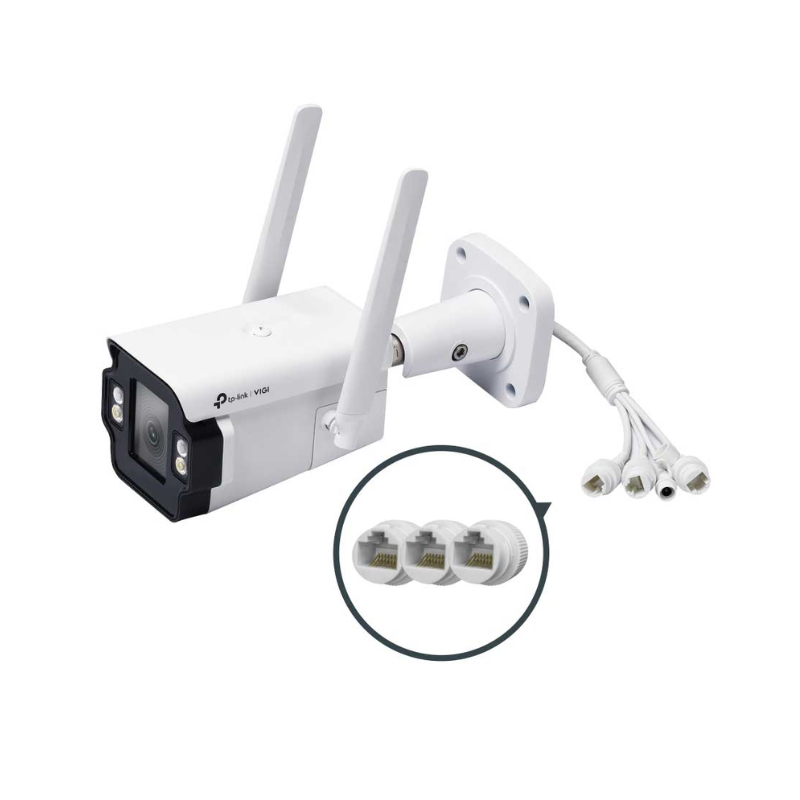

3 RJ45 10/100M LAN Ports
Alarm
N/A
Reset Button
Yes
Power
DC Power Port
On-board Storage
Built-In Memory Card Slot, Support MicroSD Card, Up to 512 GB*1

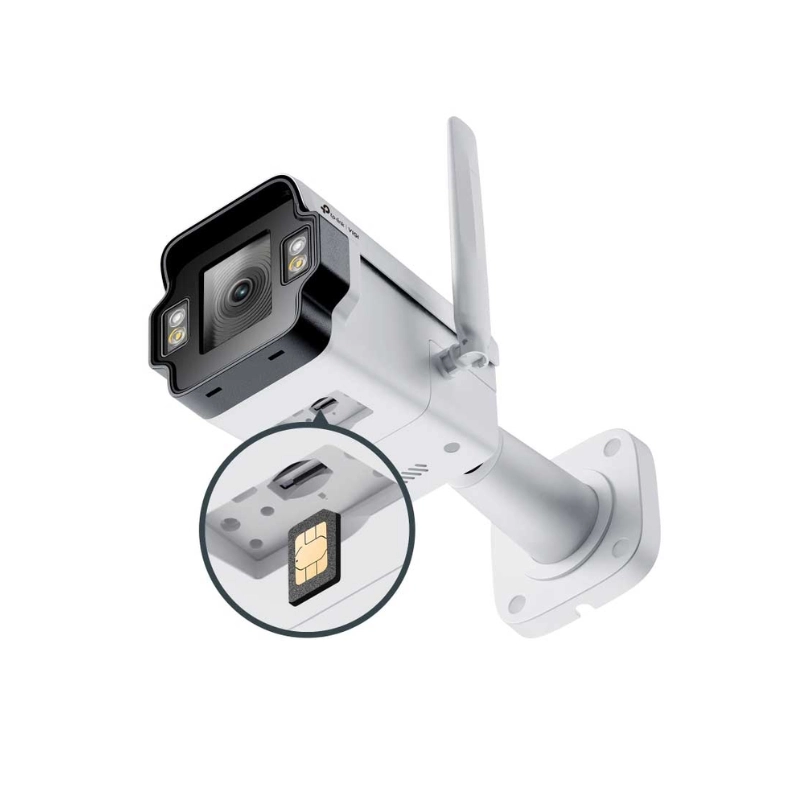

Built-in Nano-SIM Card Slot
Yes
Built-in Microphone
Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in Speaker
Yes
Audio
N/A
|
| GENERAL |
Operating Temperature
-30℃ to 60°C
Storage Temperature
-40℃ to 60°C
Operating Humidity
95% or Less (Non-Condensing)
Storage Humidity
95% or Less (Non-Condensing)

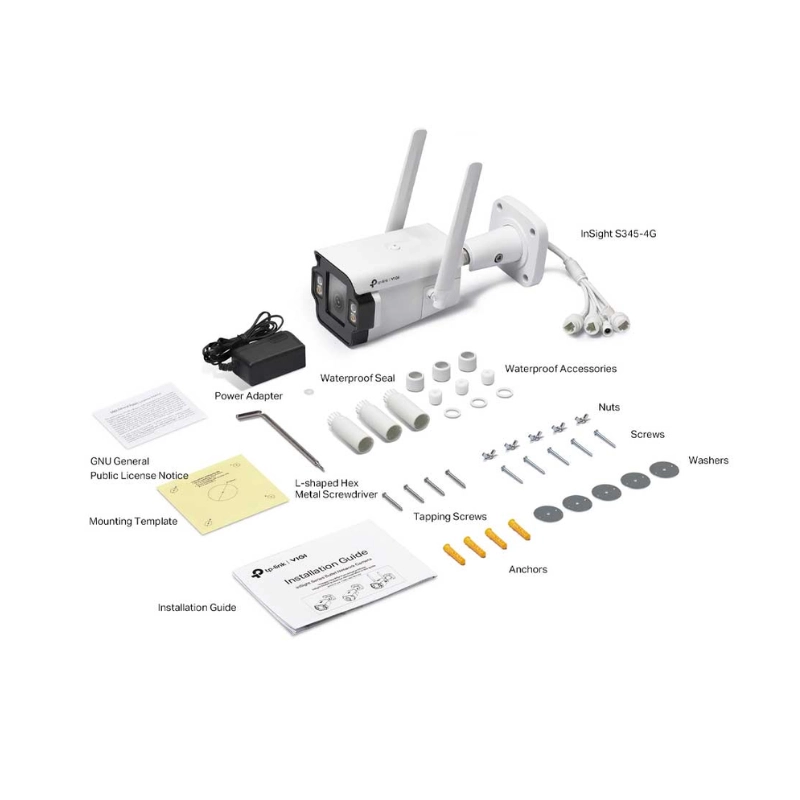

Package Content
• VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories
• Power Adapter
Material
Metal
Net Weight
1.09 Kg
Power Supply
• 12V DC ± 5%, Max. 10.59 W, 5.5 mm Coaxial Power Plug
Antenna
• Quantity: 2
• Type:
690~960&1710~2690MHz Dipole Omni-Directional Antenna
• Gain:
Ant1：0.84dBi@690~960MHz, 2.85dBi@1710~2690MHz
Ant2：0.74dBi@690~960MHz, 3.06dBi@1710~2690MHz
Protection
IP66 Weatherproof
Product Dimensions (L x W x H)
10 × 4.8 × 4.0 in (256 × 122 × 101 mm) (excluding antennas)
Certifications
WPS, WHQL, Energy Star, RoHS, CE, NCC,NTRA,KC,RCM,ONVIF, IP66
|
| Manufacturers |
TP-LINK
|
