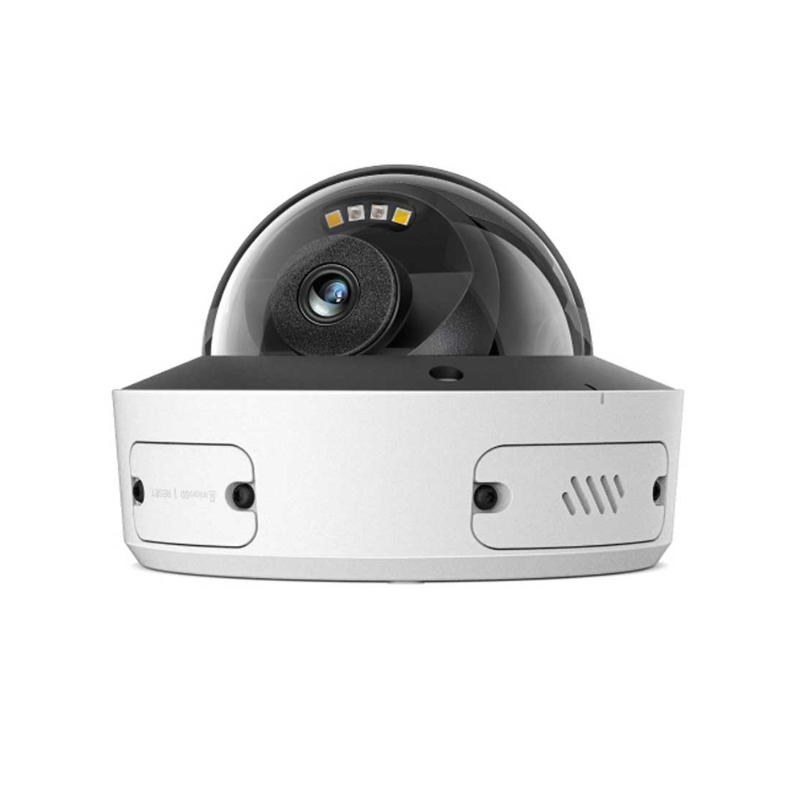

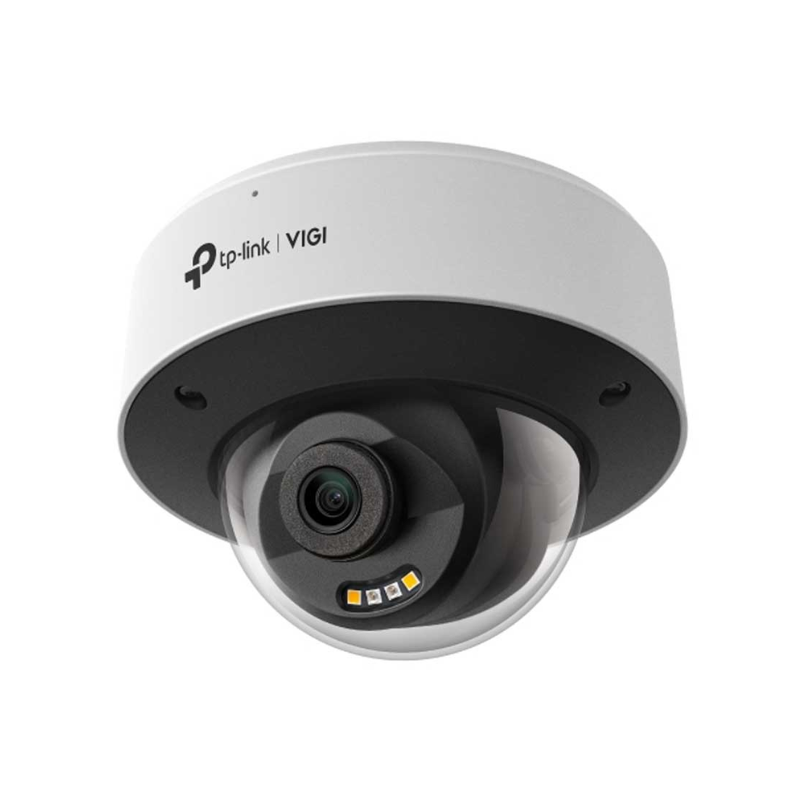

TP-Link VIGI InSight S245 4mm

Name: TP-Link VIGI InSight S245 4mm IR Motorized Network Camera
SKU: TPL-INSIGHT-S245-4
Price: 153.00 USD
Availability: InStock

Original price was: $199.00.Current price is: $153.00.

Weight: 1.94 lbs
Dimensions: 6.30 × 6.30 × 6.26 in
Brand: TP-Link
IP Camera Audio Input:Audio Input & Built-in Mic
IP Camera Audio Output: Audio Output & Built-in Speaker
IP Camera Housing Material: Metal
IP Camera IR Range: 51-100 ft
IP Camera Lens: Fixed
IP Camera Light Options: White Light
Camera Megapixels: 4 MP
IP Camera Type: Dome
IP Camera Weather Rating: IP67 Weatherproof
IP Camera White Light Range: 51-100 ft
Specialty Camera Features: True Human Body + Vehicle Detection with IR + White Light Trigger
Shipping & Tax: Calculated at Checkout

5 in stock

Sold: 0

Available: 5

About this Product:

4MP Super-High Definition and 24h Full-Color
People & Vehicle Analytics
Human & Vehicle Classification
Smart Detection
Smart Video Enhancement Technology
Active Defense and Two-Way Audio
IP67 Waterproof and IK10 Vandal-Proof
H.265+ Compression Technology
4mm focal length

Have A Question?

888.996.9609 Ask An Expert >

Industry Best Pricing
Quantity discounts available

Friendly Associates
Pre-sales product and solution advice

Expert Tech Support
Add-on tech support plans available

Super Fast Delivery
Same day shipping on most orders

The TP-Link VIGI InSight S245 4mm is a high-definition indoor network camera designed for professional monitoring of homes, offices, and small business environments. Featuring a 4mm lens, it provides precise, clear video capture for detailed surveillance. Equipped with motion detection and remote monitoring capabilities, the S245 ensures reliable security at all times. Its compact design allows for seamless integration into any indoor setting, while easy installation enables fast setup and efficient management of your indoor surveillance system.

CAMERA	Image Sensor 1/2.7” Progressive Scan CMOS Shutter Speed 1/3 to 1/10000 s Slow Shutter Yes Minimum Illumination 0.005 Lux; 0 Lux with IR/White light Day/Night Mechanism IR Cut Filter Day/Night Switch Unified/ Scheduled/ Auto
LENS	Type Fixed Focal Lens Focal Length 4 mm Aperture F1.6 FOV 4 mm: Horizontal FOV: 88°, Vertical FOV: 46°, Diagonal FOV: 105.4° Lens Mount M12*P 0.5 DORI Distance 4 mm Detect: 80 m (262 ft) Observe: 33 m (108 ft) Recognize: 16 m (52 ft) Identify: 8 m (26 ft)
ANGLE ADJUSTMENT	Range Pan: 0° to 346°, Tilt: 0° to 75°, Rotation: 0° to 355°
ILLUMINATOR	IR LED Quantity: 2 Range: 30m Wavelength: 850nm White LED Quantity: 2 Range: 30m Illuminator On/Off Control Auto/Scheduled/Always on/Always off
VIDEO	Max. Resolution 2688 x 1520 Main Stream Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2688×1520, 2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. Sub-Stream Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 848×480, 704×576, 640×480, 640×360, 352×288, 320×240 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. Bit Rate Control CBR, VBR Video Compression Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 H.264 Type High Profile H.264+ Main Stream Supported H.265 Type Main Profile H.265+ Main Stream Supported Video Bit Rate Main Stream: 256 Kbps to 6 Mbps Sub-Stream: 64 Kbps to 512 Kbps
IMAGE	Image Settings Mirror Brightness Contrast Saturation Sharpness Exposure WDR White Balance Prevent Overexposure to Infrared Light HLC Adjustable by Client Software Image Enhancement BLC/3D DNR/HLC/Smart IR Wide Dynamic Range 120 dB Note: When People & Vehicle Analytics is enabled, only DWDR is supported. SNR ≥ 52 dB Image Parameters Switch Yes Privacy Mask Up to 4 Masks ROI 1 Region OSD Setting Yes
AUDIO	Audio Communication Two-Way Audio Audio Input Yes Audio Output Yes Audio Compression Yes Audio Sampling Rate 8KHz Environment Noise Filtering Yes Audio Bit Rate 64 Kbps(G.711 alaw)
NETWORK	Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP ONVIF Yes API Open Network Video Interface (Profile S/T/G) Simultaneous Live View 3 Main Streams & 3 Sub-Streams Client VIGI App, Web UI, VIGI VMS, Utility Web Browser Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above Cloud Yes Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
ALARM AND EVENT MANAGEMENT	Smart Event Intrusion Detection Line-Crossing Detection Region Entering Detection Region Exiting Detection Object Abandoned Detection Object Removal Detection Loitering Detection People Detection Vehicle Detection Abnormal Sound Detection Scene Change Detection Basic Event Motion detection(Enhanced with Human & Vehicle Classification for more accurate alerts) Camera Tampering Exception (Illegal Login) Alarm Linkage Memory Card Video Recording Message Push Audible Warning White Light Flashing
DEEP LEARNING FUNCTION	People & Vehicle Analytics Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.†
INTERFACES	Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE Alarm N/A Reset Button Yes Power DC Power Port On-board Storage Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB§ Built-in Microphone Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera Built-in Speaker Yes Audio N/A
GENERAL	Operating Temperature -30–60 °C Storage Temperature -40–60 °C Operating Humidity 95% or Less (Non-Condensing) Storage Humidity 95% or Less (Non-Condensing) Package Content VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories Material Metal Net Weight 0.62 Kg Power Supply 12V DC ± 5%, Max. 10.54 W, 5.5 mm Coaxial Power Plug PoE: 802.3af/at, class 0, Max. 12.52 W Protection IP67 Waterproof, IK10 Vandal Proof Product Dimensions (L x W x H) 4.80 × 4.80 × 3.50 in (122 × 122 × 89 mm) Certifications CE, NTRA, FCC, VCCI, BSMI, ONVIF, KC
Manufacturers	TP-LINK
