TP-Link OC220

Name: TP-Link OC220 | Outdoor Cloud Controller for Wi-Fi Networks
SKU: TPL-OC220
Price: 106.00 USD
Availability: InStock

Original price was: $139.00.Current price is: $106.00.

Weight: 1.01 lbs
Dimensions: 3.90 × 3.90 × 1.00 in
Brand: TP-Link
Product Family: Omada Cloud Management
Shipping & Tax: Calculated at Checkout

2 in stock

Sold: 0

Available: 2

About this Product:

Manages up to 100 APs, 10 gateways, 20 switches, and even 2 DeltaStream GPON OLTs
Optional cloud access — no license fees
Powered by 802.3af PoE or Micro USB
No need for a running PC or server
Manage via the Omada App
Fanless design for silent operation
Quad-core CPU
Supports Open API and Cluster Mode

Have A Question?

888.996.9609 Ask An Expert >

Industry Best Pricing
Quantity discounts available

Friendly Associates
Pre-sales product and solution advice

Expert Tech Support
Add-on tech support plans available

Super Fast Delivery
Same day shipping on most orders

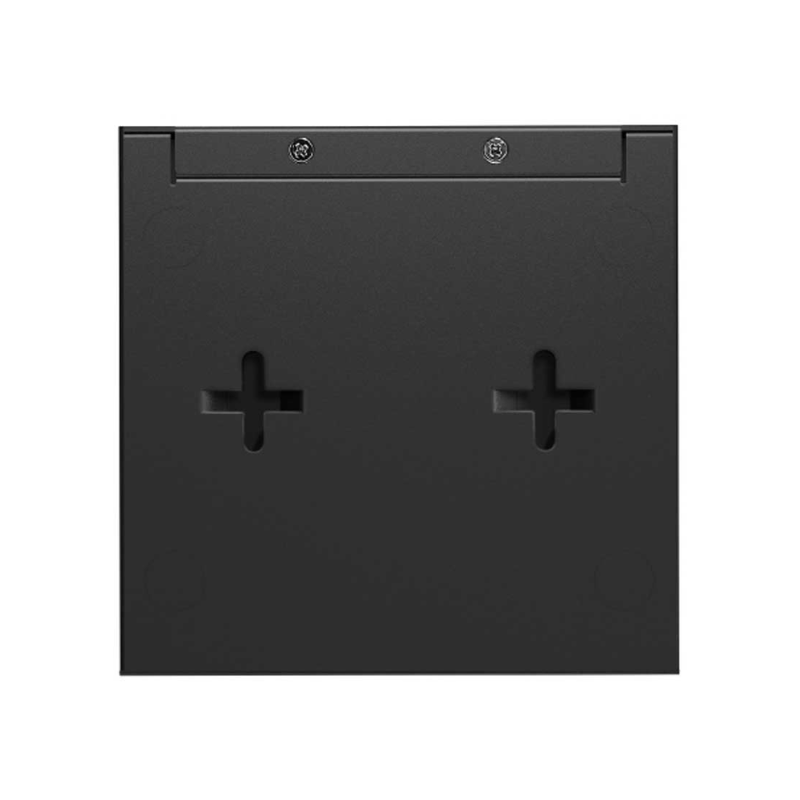

The TP-Link OC220 Omada Hardware Controller is engineered to support up to 100 Omada access points, 10 Omada gateways, 20 Omada switches, and 2 DeltaStream GPON OLTs. With remote management via the Omada app or Web UI, and local access for enhanced privacy and stability, it offers flexible control options. Key features include a robust chipset, durable metal casing, dual Gigabit Ethernet ports, and a USB 2.0 port for convenient data backup. Power options include 802.3af PoE or Micro USB (DC 5V/Min 1A), with versatile desktop or wall-mount installation.

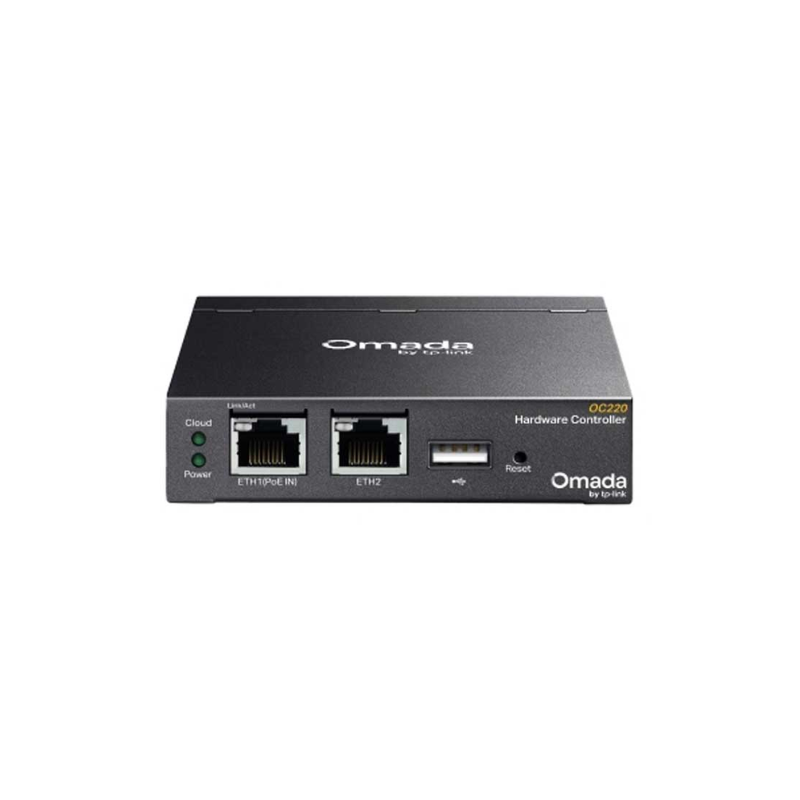

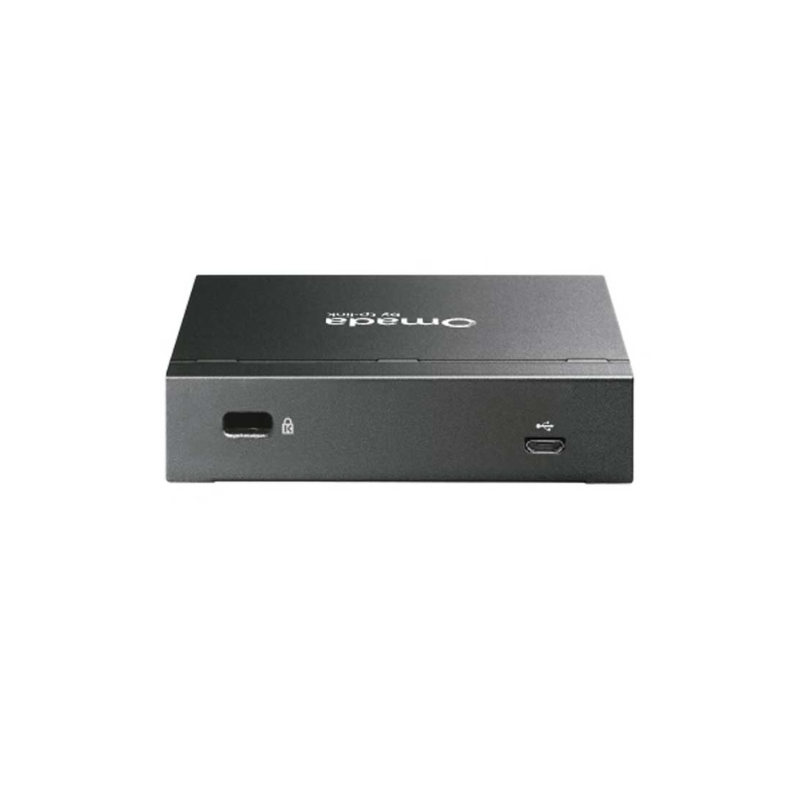

HARDWARE FEATURES	Interface 2× Gigabit Ethernet Ports 1× USB 2.0 Port 1× Micro USB Port Power Supply 802.3af PoE Micro USB（DC 5V/Minimum 1A） Dimensions ( W x D x H ) 3.9×3.9×1.0 in (100×98×25 mm)
MANAGEMENT FEATURES	Omada App Yes Centralized Management 100 Omada access points 10 Omada gateways A maximum of 20 Omada switches* A maximum of two select DeltaStream GPON OLTs* Note: Please refer to http://www.omadanetworks.com/en/business-networking/all-omada/ to find all the Omada device models supported by OC220 *†The number of supported Omada switches decreases by five for each DeltaStream GPON OLT added. Refer to https://www.omadanetworks.com/omada-sdn/product-list/#sp-gpon to find all the DeltaStream GPON OLTs that are supported by the controller. Cloud Access Yes L3 Management Yes Multi-site Management Yes Management Features Automatic Device Discovery Batch Configuration Batch Firmware Upgrading Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule Captive Portal Configuration

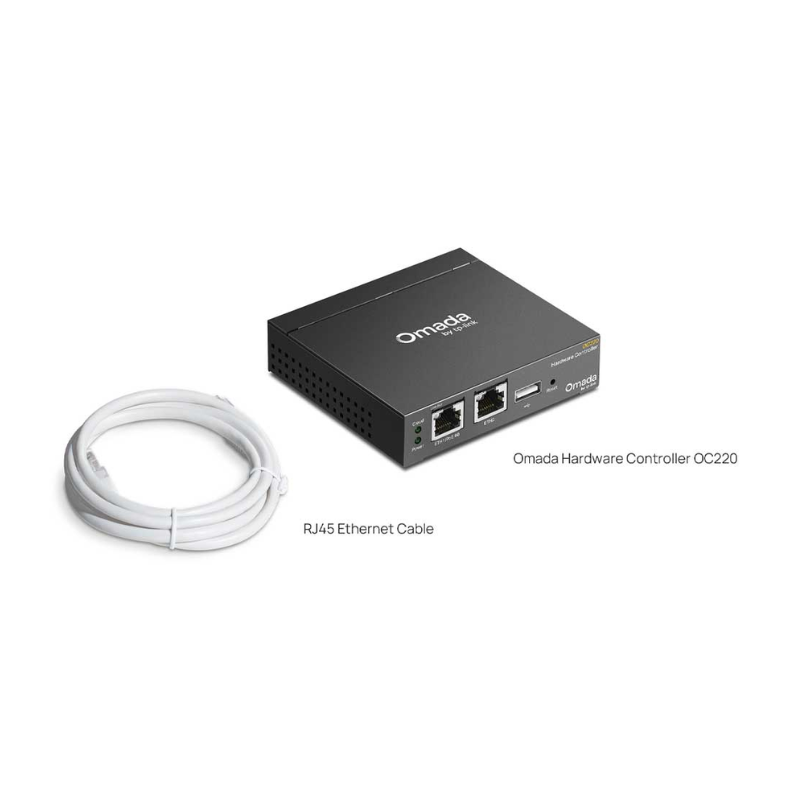

OTHERS	Certification CE, FCC, RoHS Package Content Omada Hardware Controller OC220 Quick Installation Guide RJ45 Ethernet Cable System Requirements Windows 7/8/10/11, Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux Environment Operating Temperature: -5–50 ℃ (23–122 ℉) Storage Temperature: -40–70 ℃ (-40–158 ℉) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing
Manufacturers	TP-LINK
