Patton FF-E1-SFP

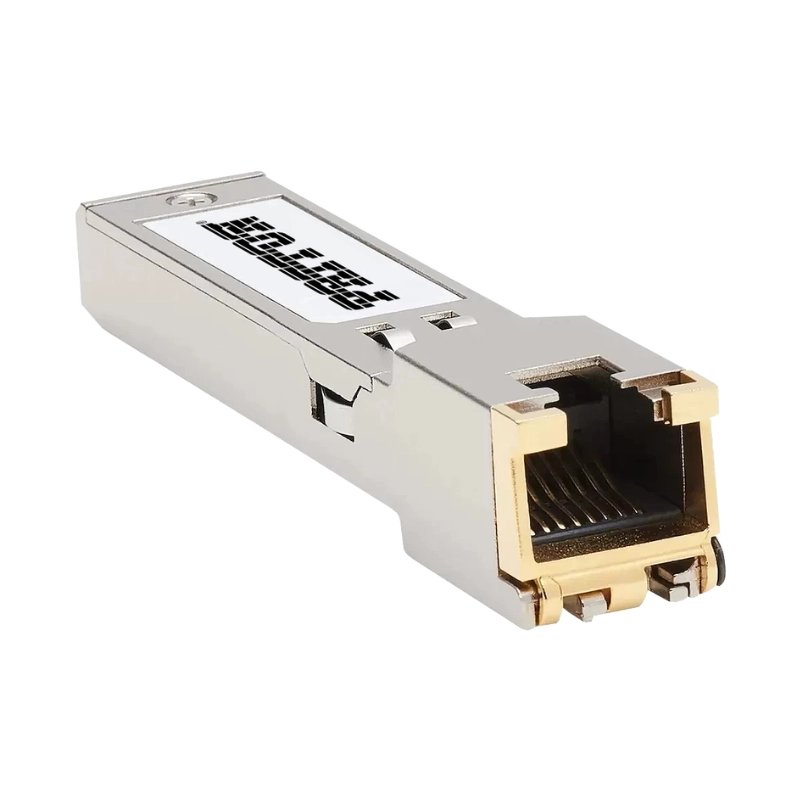

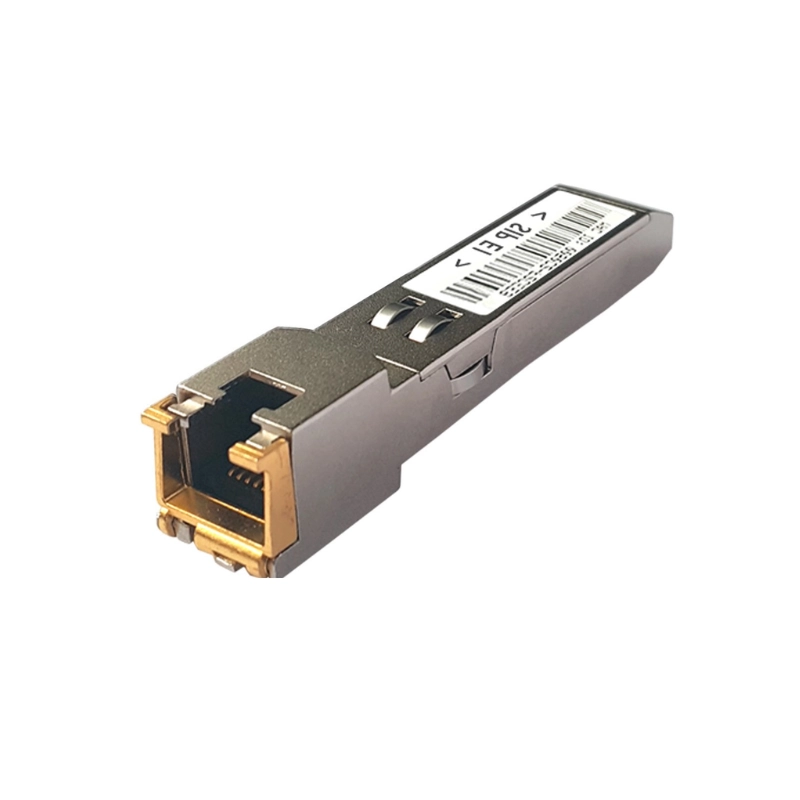

Name: Patton FF-E1-SFP Forefront E1 TDMoIP Gateway SFP Module
SKU: PAT-FF-E1-SFP
Price: 1003.00 USD
Availability: InStock

Original price was: $1,072.00.Current price is: $1,003.00.

Weight: 1 lbs
Dimensions: 8 × 8 × 8 in
Brand: Patton
Phone Type: SFP Modules

10 in stock

Sold: 0

Available: 10

About This Item:

Forefront E1 TDMoIP Gateway SFP Module
Plug and Play
120-ohm balanced
RJ45 connector
Industrial Grade -40/+85C
E1 Support
Interoperable – Interoperates with other SAToP E1/T1 equipment.
Diverse Applications
Optional API
Industrial Design

Have A Question?

888.996.9609 Ask An Expert >

Industry Best Pricing
Quantity discounts available

Friendly Associates
Pre-sales product and solution advice

Expert Tech Support
Add-on tech support plans available

Super Fast Delivery
Same day shipping on most orders

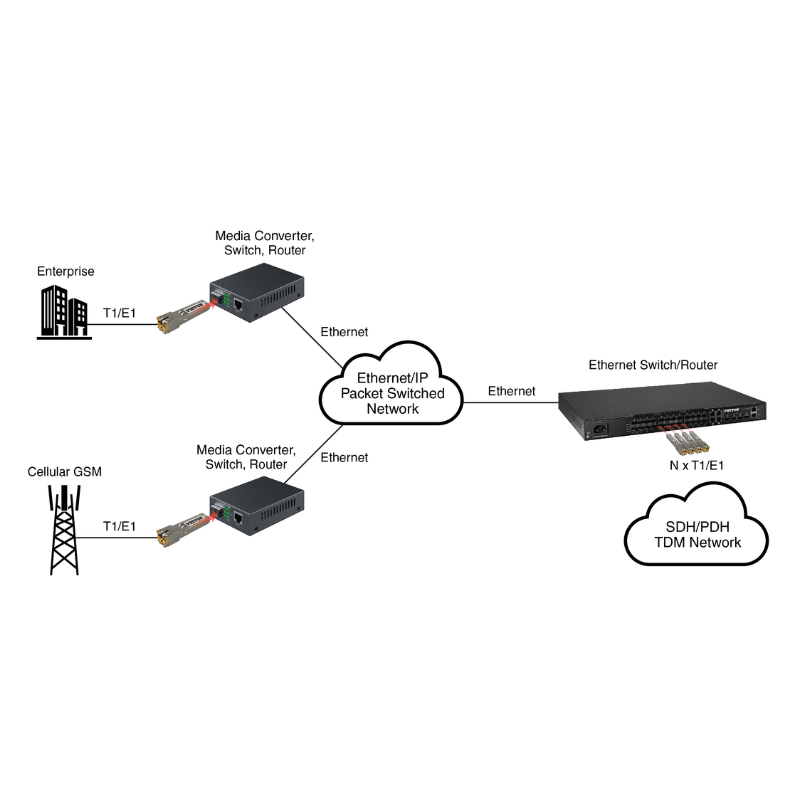

The Patton FF-E1-SFP is an innovative TDM-over-IP Gateway packaged in an SFP module. The device is a new, convenient and easy way to transport T1/E1 (DS-1) across an Ethernet network.

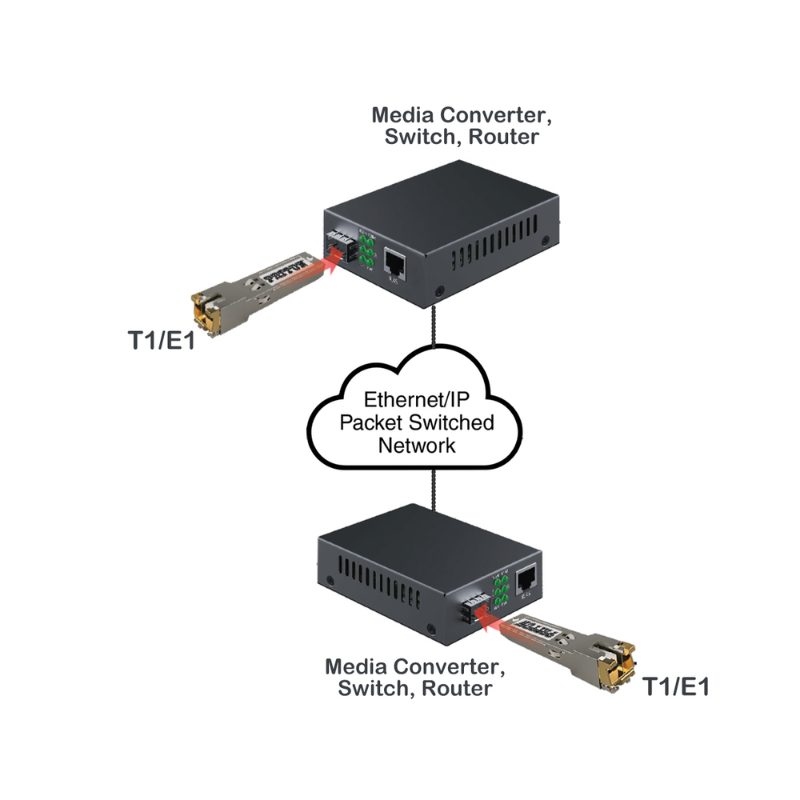

The unit utilizes the SAToP (RFC4553) protocol to convert T1/E1 data into a single stream of Ethernet packets (Pseudowire). The units can be used in pairs or with other SAToP devices.

Manufacturers	PATTON
MSA TO T1 INTERFACE	• Reception and validation of packets from the hosting system via the electrical Gigabit Ethernet interface • Decapsulation of the SAToP data blocks from the valid received packets • Delay buffer management, packet sequencing and clock recovery • Generation of the T1 bit stream using the configured clock recovery method • Transport of the T1/E1 signal on the RJ45 interface
MANAGEMENT	The FF-T1E1-SFP can only be used as a plug-and-play device
ABSOLUTE SUPPLY VOLTAGE	0-4.0 Vcc max
OPERATING TEMPERATURE	-40 – 85°C
RELATIVE HUMIDITY	5-85 % Non-condensing
BIT RATE	1.25 Gb/s typical
TRANSMISSION DISTANCE	100m maximum
OPERATING VOLTAGE	3.135-3.47 Vcc
POWER SUPPLY CURRENT	318 mA typical, 345 mA maximum
POWER CONSUMPTION	1.05 W typical, 1.3 W maximum
ESD (HIGH SPEED PINS)	1000 V
ESD (PINS)	2000 V
INSULATION (AC RMS)	1000 V
MSA RX/TX DIFFERENTIAL IMPEDANCE (1-100MHZ)	100 Ohms
MSA TX DIFFERENTIAL DATA INPUT SWING	500-1200 mV (Input at Pins 18 & 19)
MSA RX DIFFERENTIAL DATA OUTPUT SWING	400 mV minimum, 800 mV typical 1200 mV maximum (Output at Pins 12 & 13)
MSA TX DATA OUTPUT RISE/FALL TIME	260 ps (20%~80% values)
