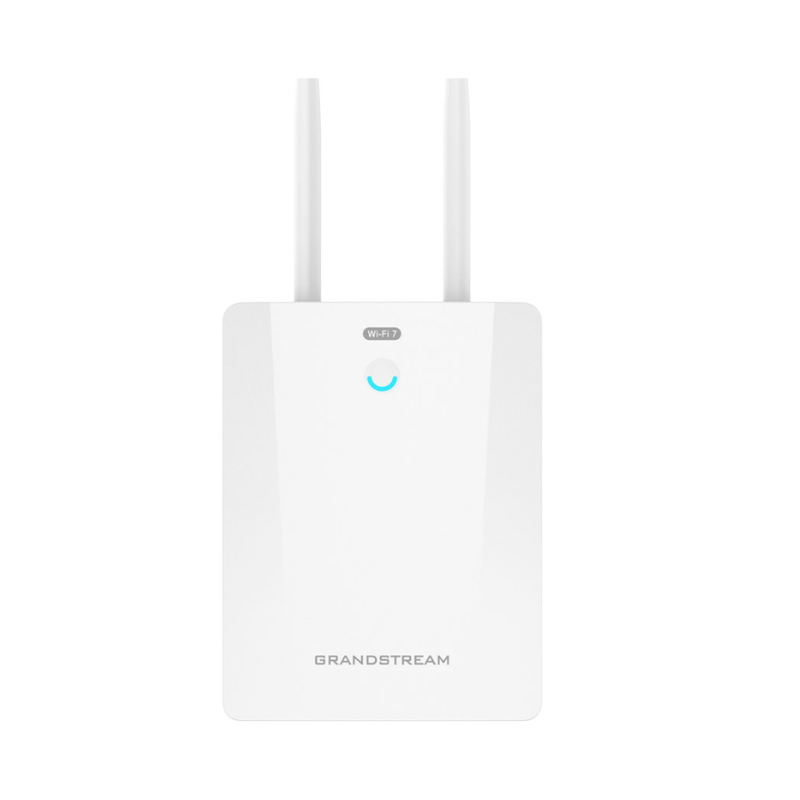

Grandstream GWN7670LR Long-Range Wi-Fi 7 Access Point and Bridge

Name: Grandstream GWN7670LR | Outdoor WiFi Access Point
SKU: GRA-GWN7670LR
Price: 158.00 USD
Availability: InStock

Original price was: $179.00.Current price is: $158.00.

Weight: 3.75 lbs
Dimensions: 14.80 × 12.64 × 5.43 in
Brand: Grandstream
Network Band: Dual Band
Frequency Band: 2.4 Ghz, 6 Ghz
Mounting Options/Type: Mounted, Outdoor (Pole)
Wi-Fi Standard: Wi-Fi 7 (802.11be)
Network Type: Wired, Wireless
Product Family: GWN-Cloud
Shipping & Tax: Calculated at Checkout

10 in stock

Sold: 0

Available: 10

About This Item:

3.6Gbps aggregate wireless throughput, 2.5Gigabit
Ethernet Port and 2.5Gigabit SFP Port
Integrated Wi-Fi 7 and Dual-band 2×2:2 MIMO with DL/UL OFDMA technology
Up to 350-meter coverage range
Supports 256 concurrent Wi-Fi client devices
Advanced QoS to ensure real-time performance of low-latency applications
Anti-hacking secure boot and critical data/control lockdown via digital signatures,
unique security certificate/random default password per device
Self-power adaptation upon auto detection of PoE+
Embedded controller can manage up to 50 local GWN series APs;
GDMS Networking offers unlimited AP management.
GWN Manager offers premise-based software controller

Have A Question?

888.996.9609 Ask An Expert >

Industry Best Pricing
Quantity discounts available

Friendly Associates
Pre-sales product and solution advice

Expert Tech Support
Add-on tech support plans available

Super Fast Delivery
Same day shipping on most orders

The Grandstream GWN7670LR is a high-performance Wi-Fi 7 long-range access point designed for medium-to-large enterprises requiring extended wireless coverage. With IP66-rated weatherproofing, dual-band 2×2:2 MIMO, and advanced DL/UL OFDMA technology, it delivers exceptional throughput and reliable connectivity. Its flexible antenna system supports both internal directional and external omnidirectional antennas, making it ideal for PTMP wireless bridge deployments. Featuring 4096 QAM modulation and Multi-Link Operation (MLO), the GWN7670LR ensures faster data rates and optimized spectrum usage. It integrates seamlessly with Grandstream’s GDMS and GWN Manager platforms for cloud or on-premise management, and supports up to 256 concurrent clients, mesh networking, BLE 5.3, and PoE+ via its 2.5G Ethernet and SFP ports.

ANTENNA	2.4G: Directional internal 8dBi/External omni 3.5dBi 5G: Directional internal 13.5dBi/External omni 3.5dBi BT: 5.0dBi Directional internal antenna beamwidth 2.4G: 90 degree 5G: 35 degree
MIMO	2.4GHz: 2×2:2, MIMO 5GHz: 2×2:2, MIMO
FREQUENCY BANDS	2.4GHz Radio: 2400 – 2483.5 MHz 5GHz Radio: 5150 – 5895 MHz Not all frequency bands can be used in all regions
CHANNEL BANDWIDTH	2.4G: 20 and 40 MHz 5G: 20, 40, 80 and 160 MHz
Wi-Fi Data Rates	-2.4G IEEE 802.11be: Up to 688 Mbps IEEE 802.11ax: 7.3Mbps to 574 Mbps IEEE 802.11n: 6.5Mbps to 300Mbps IEEE 802.11b: 1, 2, 5.5, 11 Mbps IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps -5G IEEE 802.11be: Up to 2882 Mbps IEEE 802.11ax: 7.3 Mbps to 2402 Mbps IEEE 802.11ac: 6.5 Mbps to 1732 Mbps IEEE 802.11n: 6.5 Mbps to 600 Mbps IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps *Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network
RADIO	-MAXIMUM TX POWER: 2.4G: 27 dBm 5G: 26 dBm *Maximum power varies by country, frequency band and MCS rate
RECEIVER SENSITIVITY	– 2.4G: 802.11b: -96dBm @1Mbps, -88dBm @11Mbps; 802.11g: -93dBm @6Mbps, -75dBm @54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz: -70dBm @MCS7; 802.11ax 20MHz: -60dBm @MCS11; 802.11ax 40MHz: -58dBm @MCS11; 802.11be 20MHz: -65dBm @MCS11; 802.11be 40MHz: -62dBm @MCS11; – 5G: 802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz: -70dBm @MCS7; 802.11ac 20MHz: -67dBm @MCS8; 802.11ac 40MHz: -63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9; 802.11ax 20MHz: -60dBm @MCS11; 802.11ax 40MHz: -58dBm @MCS11; 802.11ax 80MHz: -56dBm @MCS11; 802.11ax 160MHz: -52dBm@ MCS11; 802.11be 20MHz: -59dBm @MCS13; 802.11be 40MHz: -56dBm @MCS13; 802.11be 80MHz: -54dBm @MCS13; 802.11be 160MHz: -52dBm @MCS13; – COVERAGE RANGE: Up to 350 meters Coverage range can vary based on environment – BLUETOOTH: BLE 5.3

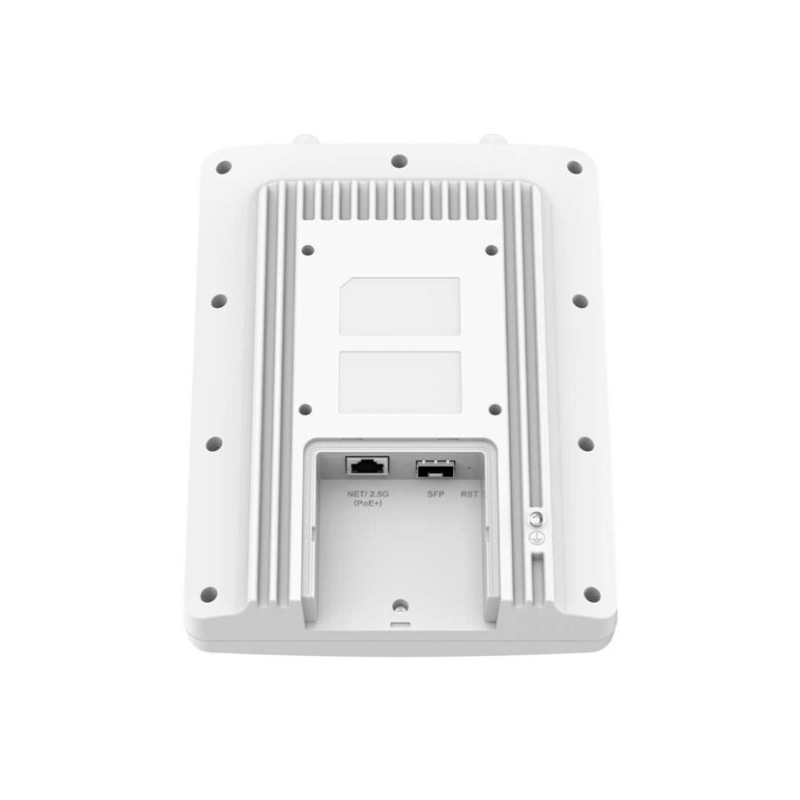

INTERFACES	– NETWORK PORTS: 1x 2.5G Ethernet WAN/LAN, RJ-45, PoE input 1x 2.5G SFP – LEDs: 1x tri-color LED for device tracking and status indication 4x blue LED for signal strength indication (PtMP mode) – AUXILIARY PORTS: 1x Reset Pinhole
POWER	– PoE Input: 802.3at – Maximum Power Consumption: 15.5W
PHYSICAL	Dimension Unit: 223.2 x 169.9 x 53.9 mm Entire Package: 376 × 321 × 138 mm Weight Unit: 1.2kg Entire Package: 2.7kg Mounting Wall mount or pole mount, kits included Package Content GWN7670LR Wi-Fi 7 Wireless AP, Mounting Kits, Quick Start Guide
ENVIRONMENTAL	Temperature Operation: -30°C to 60°C Storage: -40°C to 70°C Humidity 10% to 90% Non-condensing
COMPLIANCE	FCC, CE, RCM, IC
Manufacturers	Grandstream
